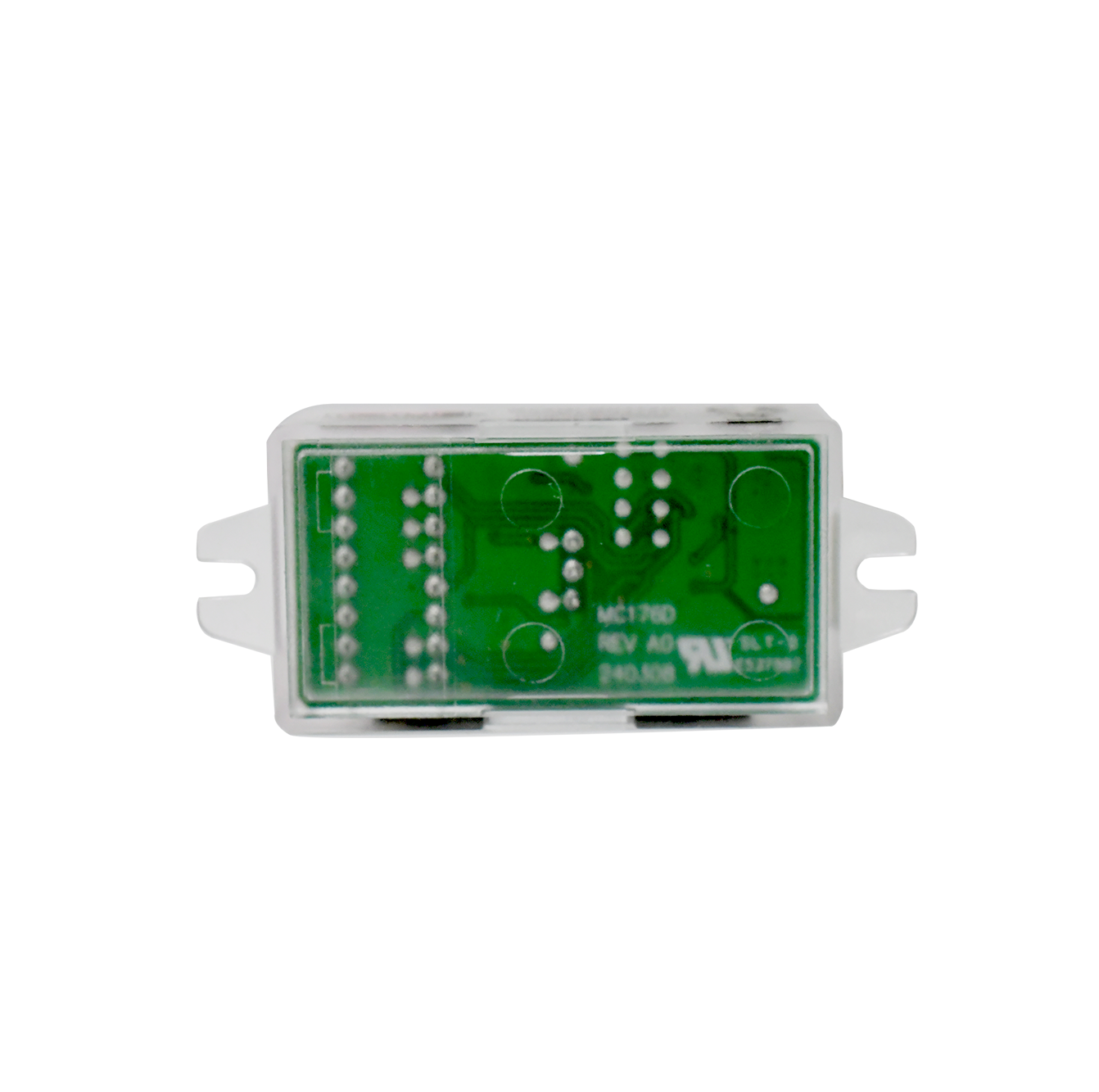

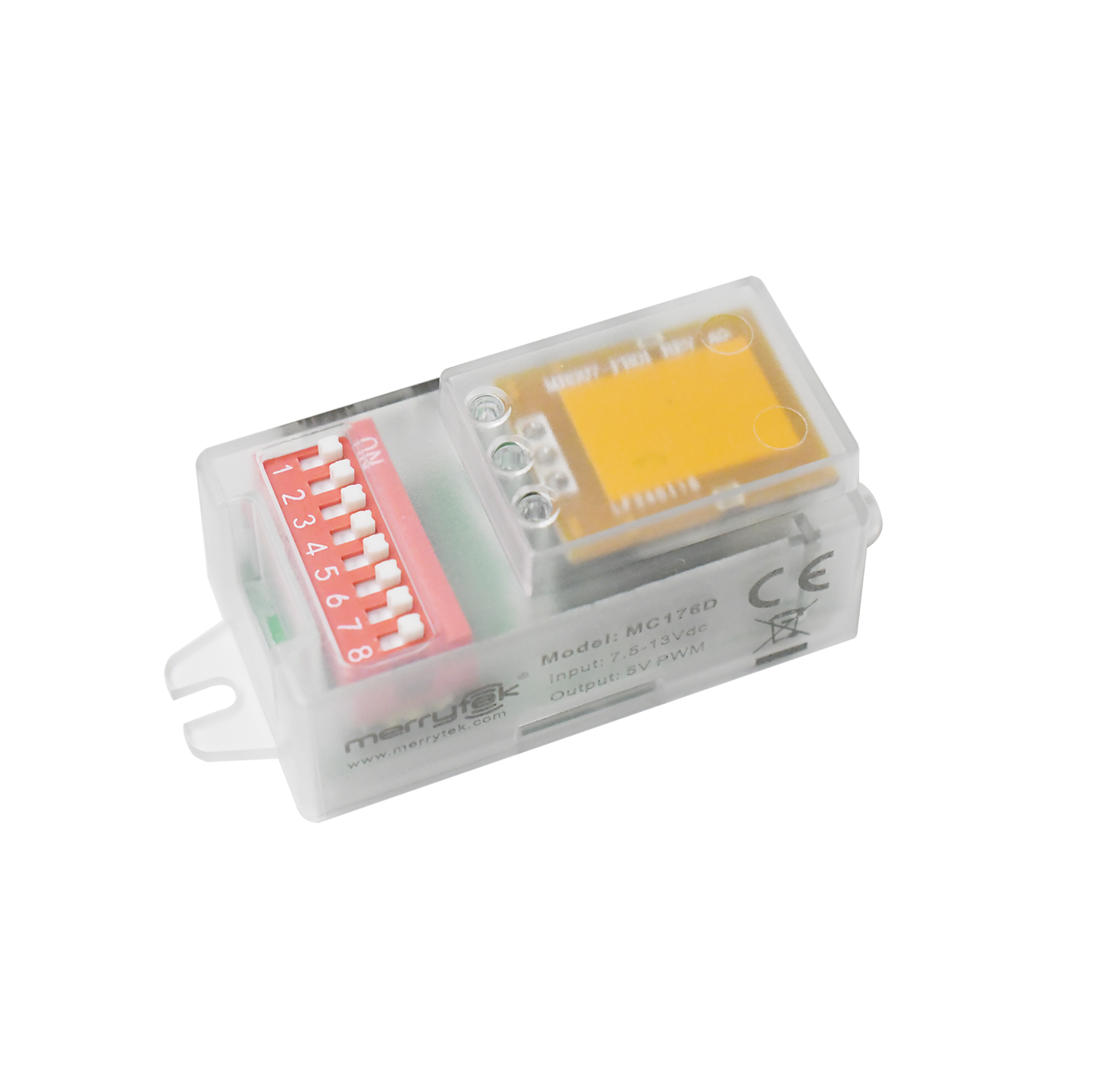

Microwave Motion DC Sensor, With Daylight Harvesting Function, DIP Switch Setting
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 定格電圧 | DC7.5～13V | 動作電流 | 16±2mA |
|---|---|---|---|
| 出力信号 | 5V PWM調光信号 | 作業周波数 | 5.8GHz ±75MHz,ISM帯 |
| 設置高さ | 3m (最大6m) | 作業温度 | 内蔵: -25~60°C |
| 一生 | 5年保証@TA | ||
| ハイライト | microwave motion sensor with daylight harvesting,microwave DC motion sensor,DIP switch microwave sensor |
||
製品の説明
Microwave Motion DC Sensor, With Daylight Harvesting Function, DIP Switch Setting
Product Features
- 7.5-13VDC Input, Matching DC power or With 12VDC
- LED driver supply for auxiliary power output
- 5V PWM dimming signal, 3 steps or 2 steps dimming
- All motion sensor parameter setting by DIP
- Low impedance antenna module with light guide column design small size, can reduce the opening of the lamp board
- Daylight priority function
Parameters
| Input | |
|---|---|
| Rated voltage | 7.5-13VDC |
| Working current | 16±2mA |
| Ripple voltage | < 100mVp-p |
| Output | |
| Output signal | 5V PWM dimming signal |
| Daylight Sensor | |
| Daylight threshold | 5Lux/15Lux/50Lux/Disable |
| Daylight priority | ON | OFF |
| 5Lux | 15Lux |
| 15Lux | 50Lux |
| 50Lux | 100Lux |
| Dimming level | 25% |
| Sensing Parameters | |
| Working frequency | 5.8GHz ±75MHz, ISM band |
| Transmit power | 1mW Max. |
| Detection Area | 100%/75%/50%/25% |
| Hold Time | 5s/90s/3min/10min |
| Stand-by period | 0s/30s/10min/+∞ |
| Detection range (radius) | Ceiling installation 3m high: r≥4m@0.3m/s, r≥2.5m@1m/s; Horizontal installation 2m high: r≥8m@0.3m/s, r≥4m@1m/s |
| Installation height | 3m (6m Max) |
| Environment | |
| Working temperature | Built-in: -25~60℃ |
| Storage temperature | -40℃…80℃, humidity ≤85% (non-condensing) |
| Certification Standards | |
| Certified | CE, RED (Pending) |
| Environmental requirements | Comply with RoHS 2.0, Reach requirements |
| IP Rating | IP20 |
| Other | |
| Wiring | 3pin 2.0mm terminal |
| Installation requirements | built-in installation |
| Packaging requirements | Bubble bag + partition + outer box (K=A) |
| Net weight | 13 ±2g |
| Lifetime | 5 Years Warranty@Ta |
Function Description
| MC176D | Function |
|---|---|
| ON/OFF function | N/A |
| Two-step dimming function | Stand-by Period be set to "+∞" |
| Three-step dimming function | Stand-by Period be set to "30S/10min" |
| Daylight harvesting | N/A |
| Daylight priority | Stand-by Period be set to "+∞" |
Operation Diagrams
On/OFF Function (set Stand-by Period to "0s")
2-step Dimming Function (set Stand-by Period to "+∞")
3-step dimming function (stand-by period be set to "10S/1min/3min/5min/10min/30min")
Daylight Priority
Diagrams
Dimension(mm)
Wiring, Function
DIP Switch Setting
| Detection Area | Hold Time | Daylight Sensor | Stand-by period | |
|---|---|---|---|---|
| Turn on | Turn off | |||
| Ⅰ ON ON 100% | ON ON 5S | ON ON 5Lux | 15Lux | ON ON 0S |
| Ⅱ - ON 75% | - ON 90S | - ON 15Lux | 50Lux | - ON 30S |
| Ⅲ ON - 50% | ON - 3min | ON - 50Lux | 100Lux | ON - 10min |
| Ⅳ - - 25% | - - 10min | - - Disable | - | - - +∞ |
Radiation Diagram
Initialization
The sensor will turn on the light at 100% brightness for the first time, and turn it off after 10 seconds. During the initialization period, no external motion sensing signal will be detected.
Default Setting
Sensitivity: 100% Hold time: 5s Daylight Sensor: Disable; Stand-by period: 0S; Stand-by Dim Level: 25%
Application Notice
- The sensor should be installed by a professional electrician. Please cut off the power before installing, wiring, changing the setting of the DIP switch, etc.
- The detection distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector.
- When the microwave sensor is installed on the wall, the detection distance will be greatly increased compared with that installed on the ceiling.
- Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
- This sensor is only for indoor use, outdoor wind and rain, and surrounding moving objects will cause false triggering.
- The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters; the distance between the two sensors should be greater than 3 meters.
- When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow closed environment, microwaves will be reflected multiple times and cause false triggering.
- Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
- Microwaves cannot penetrate metal, avoid installing in closed or semi-closed metal lamps, and there should be no metal or glass blocking the product.
- Sensor with different PWM / 0-10V driver, low light effect may be different.
- A DC regulated power supply with stable output voltage and low ripple coefficient must be used. The ripple of the power supply should be less than 100mV; the load current should be greater than 25mA.
- Product specifications and parameters may be optimized without prior notice.
