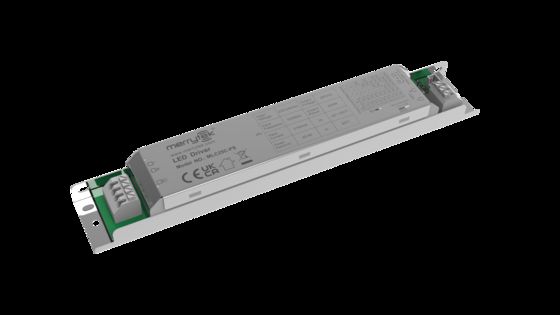

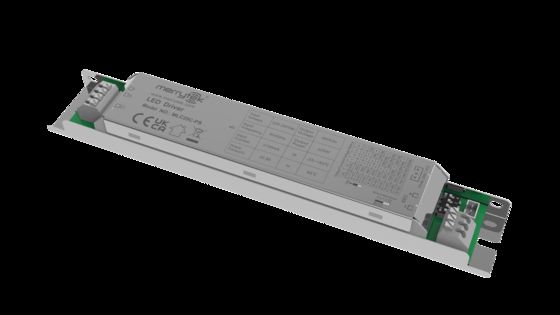

25W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 300-700mA Current

  • 25W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 300-700mA Current
  • 25W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 300-700mA Current
起源の場所 中国深Shenzhen
ブランド名 Merrytek
証明 CE、UKCA、SAA
モデル番号 MLC25C-PS
最小注文数量 100pcs
価格 交渉可能
パッケージの詳細 PE バッグ下見板、カートン (K=A)
受渡し時間 1、サンプルおよび小注文：支払いを受け取ってから5営業日以内。 2、バルク注文：入金の受け取りから3〜4週間後。
支払条件 T/T
供給の能力 10000 PCS/月

無料のサンプルとクーポンを私に連絡してください.

ワットサップ:0086 18588475571

ウェチャット: 0086 18588475571

スカイプ: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
電圧激動 220-240Vac 50Hz/60Hz 待機電源 ≤0.5W（Merrytek 5.8Ghzセンシングスプリットヘッド搭載）
力率 ≥0.95 (230V 最大負荷) 作業モデル 一定した流れ
フレッチャー ≤5％ IP評価 IP20
一生 5年保証@Ta 230V フルロード
ハイライト

25W isolated LED driver

,

PWM dimming sensor driver

,

300-700mA LED driver
メッセージ
製品の説明
25W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 300-700mA Current
Product Features
  • Isolated two-stage circuit frame, full dimming and flicker-free.
  • Support DIP switches to set the current gear.
  • Support 12V auxiliary power supply, with sensing split head can achieve integrated sensing function.
  • Equip with PWM dimming control port.
  • Suitable for various microwave sensors or wireless smart modules.
Parameters
Product series MLC25C-PS
Rated voltage 220-240V AC 50Hz/60Hz
Stand-by power ≤0.5W(Equip with Merrytek 5.8Ghz sensing split head)
Surge 1KV(L/N,EN61000-4-5)
Power factor ≥0.95 (230V Max load)
Input current ≤0.13A @230VAC full load
Inrush current <15A(100us half-current)@230V AC
Working efficiency ≥84% (230V Max load)
Output
Working model CC
Type of load LED
Flick ≤5%
Constant current accuracy Constant current accuracy ±5%
Auxiliary driver parameters 12VDC Current: 100mA Max
No-load output voltage 60VDC Max
Full load power 25W Max
Load current 300mA / 350mA / 400mA / 450mA 500mA / 550mA / 600mA / 650mA 700mA
Load output voltage range 300mA / 9-42VDC 350mA / 9-42VDC 400mA / 9-42VDC 450mA / 9-42VDC 500mA / 9-42VDC 550mA / 9-42VDC 600mA / 9-42VDC 650mA / 9-38VDC 700mA / 9-36VDC
Abnormality Protection Requirements
Protection mode Input overvoltage protection | Input no-load protection | Input short circuit protection
Environmental Requirements
Operating temperature Built-in: -25…+50℃
Maximum shell temperature(Tc) 85℃
Storage temperature/humidity -40℃…+80℃ Humidity: ≤85% (non-condensation)
Certificate Standards
Certificate CE,UKCA,SAA
Environmental requirement RoHS2.0, Reach requirement
Safety standards(LVD) EN61347-1, EN61347-2-13
EMC standards EN55015, EN61547, EN61000-3-2, EN61000-3-3
Withstand voltage Primary to secondary: 3.75KVAC Primary to ground :1.5KVAC
IP Rating IP20
Product Category Class I
Others
Wiring method Press terminal, wire diameter:0.5-1.0mm2
Installation Built-in
Package PE bag clapboard, carton(K=A)
Net weight 144.5±5g
Lifetime 5 years warranty@Ta 230V full load
Split Head Collocation
MC002D 6 MC087D 1 MC087D RC MC131D A&B
MC137D A&B MSA207D MC068D RC MC116D RC
MC116D B1
Product Information

Wiring and function

25W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 300-700mA Current 0
25W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 300-700mA Current 1

Dimension (Unit:mm)

25W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 300-700mA Current 2
Parameter Curve
25W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 300-700mA Current 3 25W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 300-700mA Current 4
Life Time Curve
25W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 300-700mA Current 5
Output Current Setting
Output current Voltage range S1 S2 S3 S4
300mA 9-42V - - - -
350mA 9-42V - - - ON
400mA 9-42V - - ON -
450mA 9-42V - - ON ON
500mA 9-42V - ON ON -
550mA 9-42V - ON ON ON
600mA 9-42V ON - ON ON
650mA 9-38V ON ON ON -
700mA 9-36V ON ON ON ON
Initialization

When powered on, it is steady on. When the sensor is configured, it changes according to the status of the sensor.

Default Setting

Adjust the corresponding current gear according to the order or customer demand.

Application Notice
  • Please use this product in accordance with the specifications. Failure may occur if the product is used beyond the use conditions.
  • The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
  • The load LED string must be connected first, and then turn on the input power, otherwise it may damage the LED string.
  • After the LED drive input is powered off, there will be residual voltage at the output end, which can be maintained for about 3 minutes.
