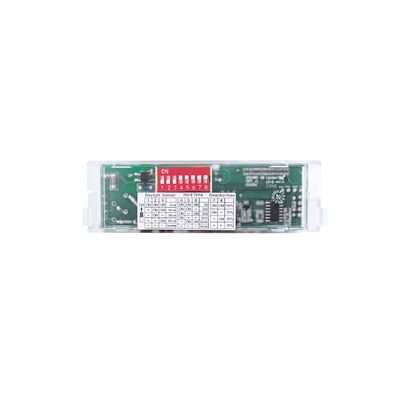

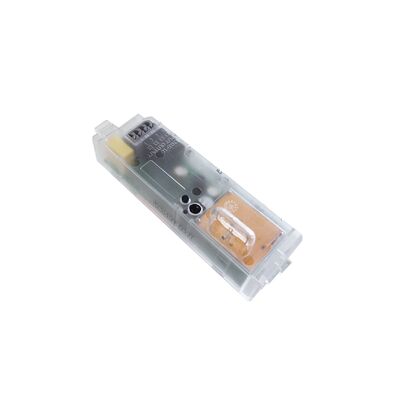

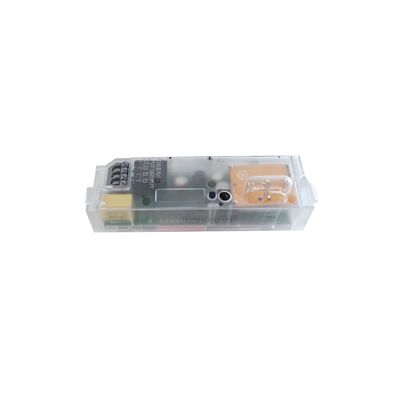

Tri-proof Light ON/OFF Motion Sensor For Parking Lot Use, Without False Triggering
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 定格電圧 | 220-240VAC 50/60Hz | 待機電源 | ≤0.5W |
|---|---|---|---|
| 出力信号 | オン/オフ | 動作周波数 | 5.8GHz ±75MHz,ISM帯 |
| 設置高さ | 3m (最大6m) | 一生 | 5年保証@TA |
製品の説明
【Product Features】
- Patented coupling dipole antenna design and Adaptive Algorithm, which effectively solves the problem of low installation height of columnar antenna sensors and false triggering caused by side-lobe radiation of the antenna when installed in a metal room.
- Widely used in parking lots and other places, it solves the problem that traditional sensor cannot detect vehicles or the vehicle cannot be detected until it passes directly under the sensor
- Sensor parameters can be set by remote control and DIP switches, easy to configured.
【Parameters】
| Input | ||
| Rated Voltage | 220-240Vac 50/60Hz | |
| Stand-by Power | ≤0.5W | |
| Surge Test | 1KV(L/N,EN61000-4-5) | |
| Output | ||
| Output Signal | ON/OFF | |
| Type of Load | Inductive or Resistive | |
| Load Capacity | 200W@230Vac(Inductive) ; 400W@230Vac(Resistive) | |
| Max. Surge Capacity |
7A relay 20A(50% Ipeak, twidth =200uS, 230Vac full load, cold start); |
|
| Sensor Parameters | ||
| Working Frequency | 5.8 GHz ±75MHz, ISM wave band | |
| Transmitting Power | 1mW Max. | |
| Detection Area(Radius) |
Ceiling mounting height 3m: r≥4m@0.3m/s, r≥2.5m@1m/s; Wall mounting height 3m: r≥5m@0.3m/s, r≥4m@1m/s Test condition: Set 100% sensitivity, open 60㎡ indoor area. |
|
| Mounting Height | 3m (6m Max) | |
| Hold time |
5s/30s/90s/5min/20min/30min (Dial code) 5s/30s/1min/3min/5min/10min/20min/30min (MH10 setup) |
|
| Detection Area | 100%/75%/50%/25% | |
| Daylight Sensor | Normal Daylight |
2Lux/10Lux/30Lux//50Lux/Disable 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable (MH10setup) |
| Operating Temperature | -25℃…+60℃ | |
| Storage Temperature | -40~80℃ Humidity: ≤85% non-condensing | |
| Certificate Standards | ||
| Certified | CE, RED | |
| Environmental Requirements | Comply with RoHS 2.0 Reach | |
| IP Rating | IP20 | |
| Other | ||
| Remote Model | MH10; MH16; MH03 | |
| Wiring | Press-in Type Terminals, wire diameter: 0.5-0.75mm2 | |
| Installation | Built-in | |
| Package | Bubble bag+Clapboard + Carton(K=A) | |
| Net Weight | 40.3±3g | |
| Lifetime | 5 years warranty@Ta | |
【Function】
| ON/OFF function | Light control Disable or external brightness value is lower than the set value. When the microwave sensors detects the movement of an object, the sensor triggers and enters the light-on state. It maintains the light-on state after a delay and then enters the light-off state. |
| Two-step dimming function | N/A |
| Three-step dimming function | N/A |
| Daylight harvesting | N/A |
| Daylight priority | N/A |
【Product Information】
- Dimension(units: mm)
- Installation
First Option:
【DIP Switch Setting】
| Function | Daylight Sensor | Hold Time | Detection Area | ||||||||
| Dial code | 1 | 2 |
3 |
Daylight Sensor Threshold | 4 | 5 | 6 | Hold time | 7 | 8 | Detection area |
| Ⅰ | ON | ON | ON | 2Lux | ON | ON | ON | 5S | ON | ON | 100% |
| Ⅱ | - | ON | ON | 10Lux | ON | ON | - | 30S | ON | - | 75% |
| Ⅲ | - | ON | - | 30Lux | ON | - | ON | 90S | - | ON | 50% |
| Ⅳ | - | - | ON | 50Lux | ON | - | - | 5min | - | - | 25% |
| Ⅴ | - | - | - | Disable | - | ON | ON | 20min | N/A | N/A | N/A |
| Ⅵ | N/A | N/A | N/A | N/A | - | - | - | 30min | N/A | N/A | N/A |
- Radiation Pattern
【MH10 Remote Control】
<img alt="" src="
【Initialization】
The light will be turned on 100% brightness after power on, and will be turned off after 10 seconds. During initialization, no external motion sensing signal will be detected.
【Default Setting】
【Initialization】
The light will be turned on 100% brightness after power on, and will be turned off after 10 seconds. During initialization, no external motion sensing signal will be detected.
【Default Setting】
Sensitivity: 100% Hold time: 5s Daylight sensor: Disable
【Application Notice】
- The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
- Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.. Given detecting area is typical value that was measured by 165cm/65kg testers in an indoor open environment.
- The detection area of the microwave sensor when installed on the wall will be greatly increased compared to when installed on the ceiling. If adopts wall ceiling, please reduce the sensitivity or contact our company to confirm the usage settings. The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
- Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
- Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
- The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters. The distance between the two sensors should be greater than 3m.
- When the sensor is installed in a metal lamp, on a metal reflective surface, or in a small closed environment, the microwave will be reflected multiple times and cause false triggering. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.
- Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
- Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product.
