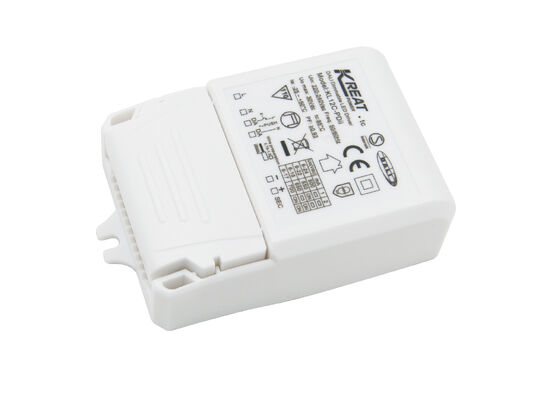

DALI2 DT6 150-500mA 12W Dimmable LED Driver For Led downlight With NFC Programming
商品の詳細
| 動作電圧 | 220〜240Vac 50Hz/60Hz | 力率 | ≥0.9C @230VAC (フルロード) |
|---|---|---|---|
| 待機電力 | ≤0.5W ((@230Vac) | 効率 | 83%最大 @230VAC (フルロード) |
| 動作モード | DALI2調光 & PUSH調光 | 設置寸法 | 88×52×25.5mm |
| 保証 | 5年 | 出力常流 | 150-500mA |
| ハイライト | DALI2 dimmable LED driver 12W,NFC programmable LED downlight driver,150-500mA DALI2.0 LED driver |
||
製品の説明
DALI2 DT6 150-500mA 12W Dimmable LED Driver For LED Downlight With NFC Programming
Product Overview
DALI2 DT6 150-500mA 12W dimmable LED driver for LED downlight with NFC programming
Product Features
- Flicker-free for the whole dimming range
- Stand-by power below 0.5W
- Primary dimming with a push button
- NFC technology for wireless programming
- Built-in DALI interface DT6
- Centrally-supplied DC emergency operation DT19
- CLO compensation
- Protection: short circuit / over temperature / over voltage
- Derating the current for high ambient temperature
- Push dim with memory function
- 5-year warranty
Technical Parameters
| Micro series: KL12C-PDiiN | |
|---|---|
| Input Specifications | |
| Operating Voltage | 198-264Vac 50Hz/60Hz |
| Rated Input Voltage | 220-240Vac 50Hz/60Hz |
| DC Input Voltage range | 200-240Vdc |
| Input Current | 0.07A Max. |
| Input Inrush Current | <15A (Half current pulse width 100μs) @230Vac |
| Power factor (@230V 100% load) | ≥ 0.9C |
| Total harmonic distortion | Typical: 15% (@230Vac, 100% load) |
| Stand-by power | ≤0.5W (@230Vac when PUSH or DALI turns off) |
| Efficiency (@230Vac, 100% load) | 83% |
| Wiring Method | 0.75-1.5mm² |
| Output Specifications | |
|---|---|
| Operating mode | Constant Current |
| Load type | LED |
| Ripple requirement | Flicker value: less than 5% for the whole dimming range |
| Start-up time | <1s (@230Vac); <0.5s (@200Vdc) |
| No-load output voltage | 55 V DC Max. |
| Load output voltage range | 3-40V DC |
| Full load output power | 12W |
| Load output current | 150-500mA |
| Constant current/voltage Precision | Constant Current Precision ±5% |
| Wiring method | Push terminal, wire cross section: 0.75-1.5mm² |
| Control Method | |
|---|---|
| Primary PUSH Dimming | Primary PUSH dimming (Max. lead length: 20M) |
| Dimming Range | Primary PUSH & DALI dimming: 0%-100% |
| DALI Dimming | DALI dimming (Max. lead length: 300 m) |
| Protection & Environment | |
|---|---|
| Output over temperature protection | Yes, without self recovery function (Can be inquired) |
| Output short circuit protection | Yes, with self recovery function (Can be inquired) |
| Operating temperature/humidity | -25℃~50℃ Humidity: 85% (Non-condensing) |
| Storage temperature/humidity | -40℃~80℃, Humidity: 10%-95% |
| Max. case temp (Tc) | 85℃ |
| Safety & Certifications | |
|---|---|
| EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 |
| DALI protocol standard | IEC62386-102, IEC62386-207 DT6 / 251 / 252 / 253 IEC62386-220 DT19 |
| Safety standard | EN61347-1 EN61347-2-13 |
| Certification | CE, CB, ENEC, SAA |
| Withstand voltage | 3750Vac, 5mA, 60s (Input "L N" - Output "SEC") |
| Physical Specifications | |
|---|---|
| Degrees of protection | IP20 |
| Type of protection | Class II |
| Installation type | Independent installation |
| Dimensions (with crimping) | 88×52×25.5mm |
| Blackout memory function | Yes, PUSH blackout memory |
| PUSH dimming synchronization | Parallel: 15 units Max. Series: 25 units Max. |
| Packaging requirement | PE bag + Instruction + kraft box + clapboard + outer carton (K=A) |
| Weight (With crimping) | 80.2±5g |
| Life | 5 year @Ta full load |
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.
Dimensions
Wiring Diagrams
Fig. A DALI Dimming
Fig. B Push Dimming
Derating & Dimming Curves
Current Corresponding Voltage
| Current (mA) | Pomax (W) | Uout (V) |
|---|---|---|
| 150 | 6.0 | 3~40 |
| 200 | 8.0 | 3~40 |
| 250 | 10.0 | 3~40 |
| 300 | 12.0 | 3~40 |
| 350 | 12.3 | 3~35 |
| 400 | 12.0 | 3~30 |
| 450 | 12.2 | 3~27 |
| 500 | 12.0 | 3~24 |
The typical current data sets are for reference when selecting LED fixture models. More current levels can be set by NFC using a mobile APP adjustable in 1mA steps.
Scan the code to download Merrytek NFC App
Operation Instructions
- ON/OFF: Short-press the PUSH switch (0.1s-1s), the LED driver will turn on or off.
- Dimming: Press and hold the PUSH switch (1s-8s). The LED driver can achieve dimming, brightening, or both, with a dimming range of 1-100%.
- Memory: PUSH dimming has a dimming memory function.
- Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15s.
- DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
Important Safety Notes
- The LED driver must be connected to the load before turning on the input power; otherwise, the LED driver may be damaged.
- After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
- Before setting the parameters via NFC, please ensure the driver is powered off.
