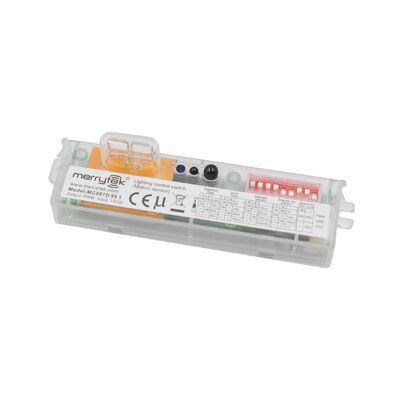

Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design
商品の詳細
| 動作電圧範囲 | 12±1VDC | 出力信号 | PWM / 0-10V調光信号 |
|---|---|---|---|
| 取付高さ | 3m (最大6m) | 作業環境温度 | -25~60℃ |
| 動作電流 | 20±3mA | インストール | 内蔵 |
| パッケージ | カートン (K=A) | 一生 | 5年保証@TA |
| ハイライト | PWM dimmable tri-proof light,motion sensor parking lot light,patented antenna sensor light |
||
製品の説明
Transparent Shell PWM Dimmable Tri-proof Light Sensor for Parking Lot
Product Features
- 12V DC input with 0-10V dimming signal or PWM dimming signal output
- Optional three-step and two-step dimming with adjustable detection area
- Patented antithetical dipoles antenna design with Adaptive Algorithm
- Eliminates false triggering caused by side-lobe radiation in metal environments
- Ideal for parking lots and similar applications
- Remote control and DIP switch configuration for easy setup
Technical Specifications
| Input Specifications | |
|---|---|
| Rated Voltage | 12±1Vdc |
| Working Current | 20±3mA |
| Ripple Voltage | <100mVp-p |
| Output Specifications | |
| Output Signal | PWM dimming signal | 0-10VDC dimming signal |
| Daylight Sensor | |
| Daylight Priority ON | 5Lux/15Lux/30Lux/50Lux | 100Lux | 150Lux |
| Daylight Priority OFF | 150Lux | 200Lux | 300Lux |
| Sensor Parameters | |
| Transmitting Power | 1mW Max. |
| Detection Area (Radius) | Ceiling mounting 3m: r≥4m@0.3m/s, r≥2.5m@1m/s Wall mounting: r≥5m@0.3m/s, r≥3m@1m/s |
| Mounting Height | 3m (6m Max) |
| Environmental Specifications | |
| Working Temperature | -25~60℃ |
| Storage Temperature | -40~80℃ |
| Humidity | ≤85% non-condensing |
| Certifications & Standards | |
| Certified | CE |
| Environment Requirements | RoHS 2.0, Reach |
| IP Rating | IP20 |
| Other Specifications | |
| Wiring | 3pin 2.0mm terminal |
| Installation | Built-in |
| Package | Clapboard + Carton(K=A) |
| Lifetime | 5 years warranty |
Model Variations
| Model No. | MC087D 99 1 |
|---|---|
| Set mode | Top dip | Bottom dip | Top dip | Bottom dip |
| Mounting structure | Clasp structure | Clasp structure | Screw installation structure | Screw installation structure |
| Output Signal | PWM dimming signal | PWM dimming signal | PWM dimming signal | PWM dimming signal |
| Product Images |  |
Functional Modes
| Function | Configuration |
|---|---|
| ON/OFF function | Stand-by Period set to "0s" |
| Two-step dimming function | Stand-by Period set to "+∞", Daylight Sensor set to "Disable" |
| Three-step dimming function | Stand-by Period set to "1min/10min", Daylight Sensor not set to "Disable" |
| Daylight priority | Stand-by Period set to "+∞", Daylight Sensor set to "10Lux/30Lux/50Lux" |
Product Information
Dimensions
Function & Wiring Diagram
Installation Guide
Installation Note: The distance between microwave antenna and the metal plate and lamp housing must be greater than 3.2mm, and the metal plate step should not be higher than 2mm, otherwise it will affect the operation of the microwave antenna.
DIP Switch Configuration
| Function | Detection Area | Hold Time | Daylight Sensor | Stand-by Period | Stand-by Dim Level | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||||||
| Ⅰ | ON | ON | 100% | ON | ON | 5s | ON | ON | 15Lux | ON | ON | 0s | ON | 20% |
| Ⅱ | ON | - | 75% | ON | - | 30s | ON | - | 50Lux | ON | - | 1min | - | 30% |
| Ⅲ | - | ON | 50% | - | ON | 3min | - | ON | 150Lux | - | ON | 10min | ||
| Ⅳ | - | - | 25% | - | - | 10min | - | - | Disable | - | - | +∞ | ||
Note: When stand-by period dial code set to +∞, it will enter daylight priority mode with half-bright shutdown.
Radiation Pattern
Initialization & Default Settings
Initialization Process
The light will be turned on at 100% brightness after power on, and will be turned off after 10 seconds. During initialization, no external motion sensing signal will be detected.
Default Settings
- Sensitivity: 100%
- Hold time: 5s
- Daylight sensor: Disable
- Stand-by period: 0s
- Stand-by dim level: 20%
Application Guidelines
Important Installation Notes:
- Installation should be performed by qualified electricians only
- Always turn off power before installation, wiring, or changing DIP switch settings
- Detection area varies with object speed, size, mounting height, angle, environment, and reflective materials
- Wall mounting significantly increases detection area compared to ceiling mounting
- Sensor parameters may require adjustment for different installation environments
- For indoor use only - outdoor use affects waterproof performance
- Maximum installation height: 6 meters (optimal: 3 meters)
- Minimum distance between sensors: 3 meters
- Avoid installation near moving objects, fans, DC motors, or air outlets
- Microwaves cannot penetrate metal - do not install in closed metal enclosures
- Use DC regulated power supply with stable output voltage and low ripple coefficient (<100mV)
- Load current should be greater than 25mA
