28W Non-isolated Series Sensor Dim Driver For LED Ceiling Light
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 電圧激動 | 220-240Vac 50Hz/60Hz | 入力電流 | ≤0.17A @ 230VAC |
|---|---|---|---|
| 力率 | ≥0.90 (230V 最大負荷) | 全負荷のパワー | 最高25W |
| 動作周波数 | 5.8GHz ±75MHz,ISM帯 | 待機電源 | <0.1W@230VAC |
| ハイライト | 28W LED ceiling light dim driver,Non-isolated sensor dim driver,LED sensor driver with warranty |
||
製品の説明

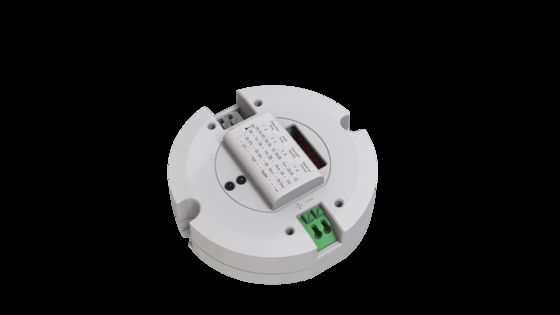

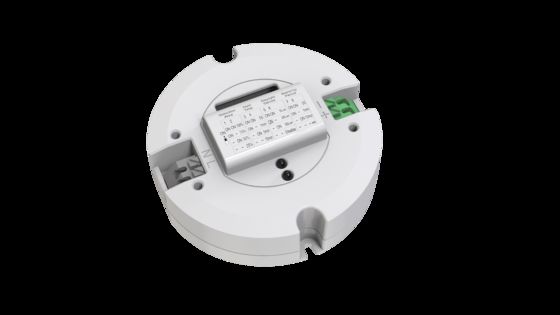

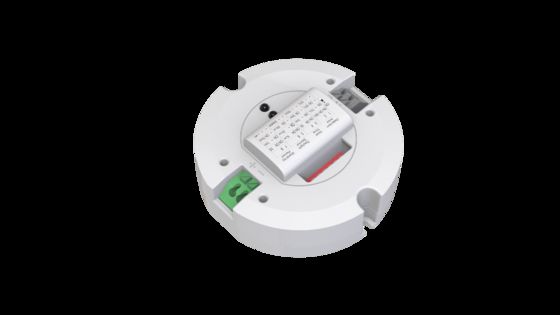

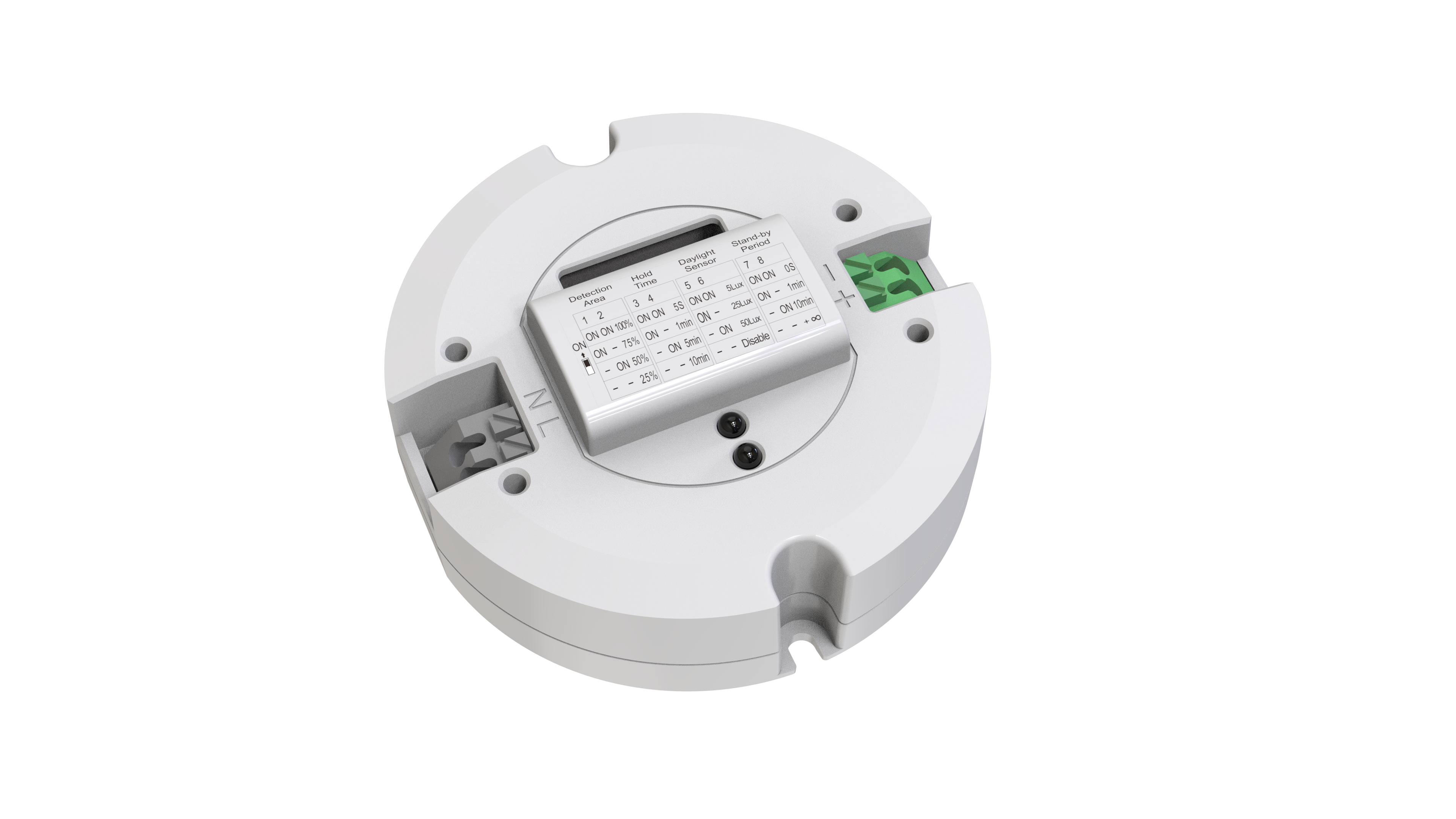

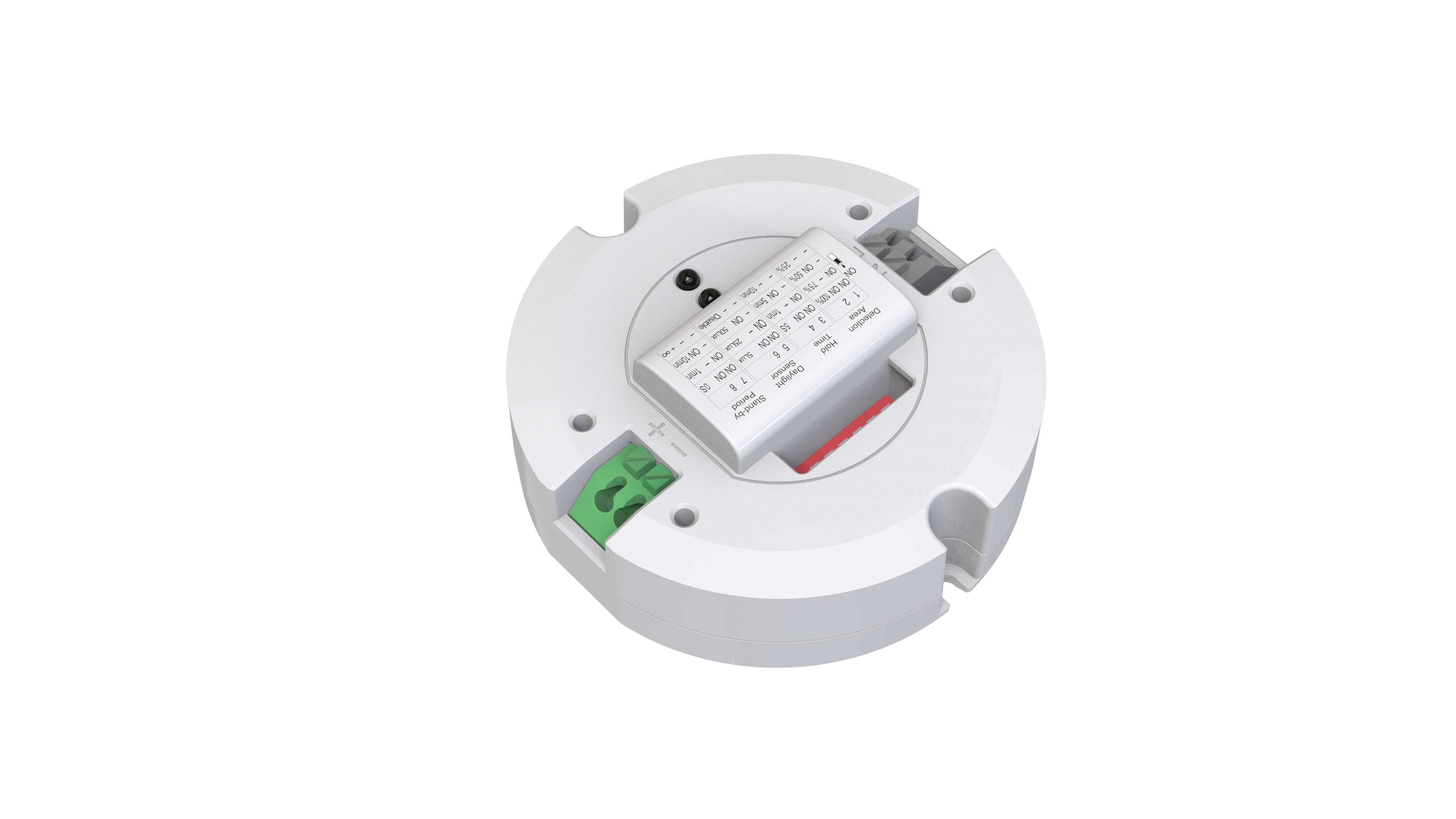

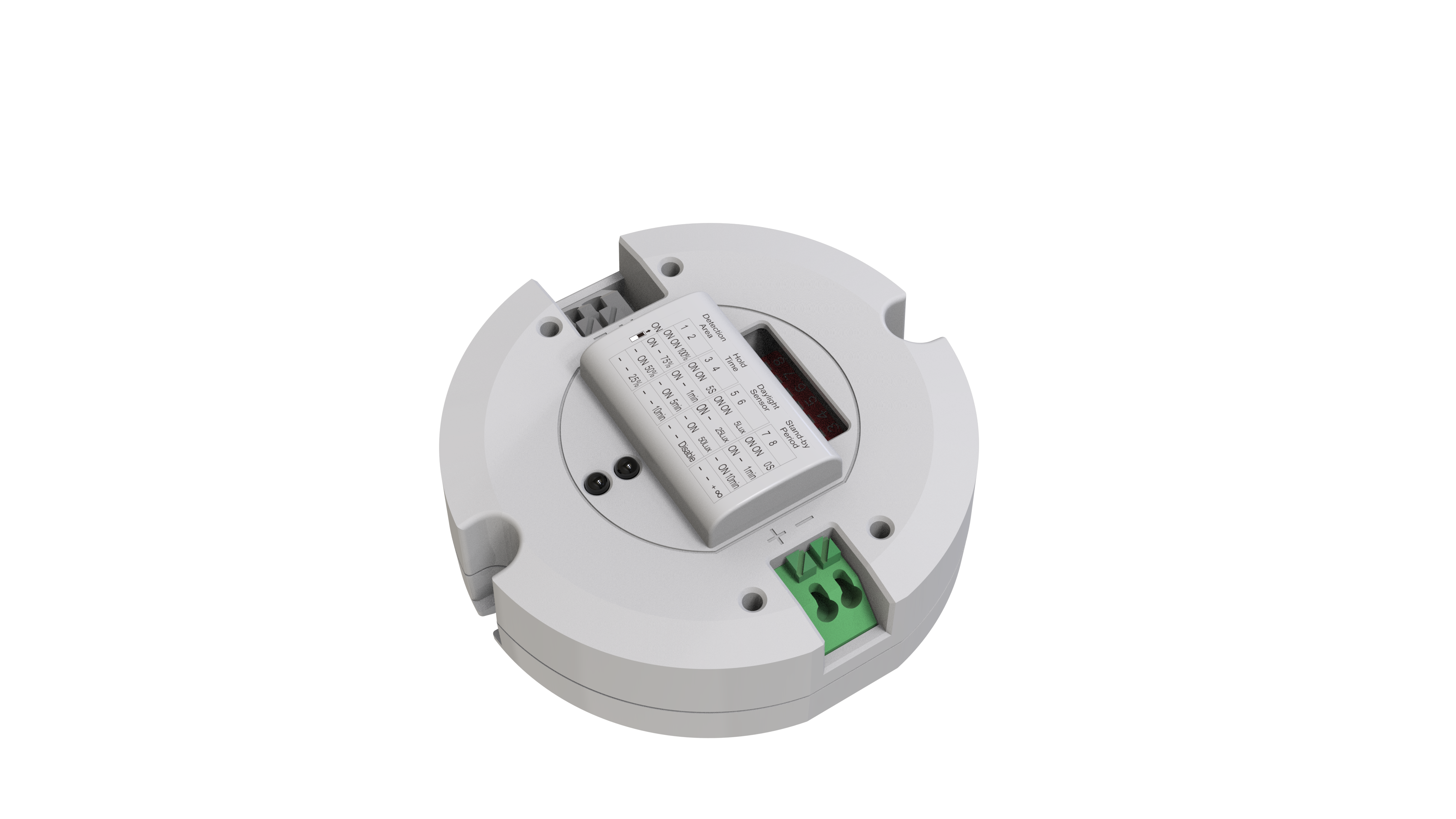

MLC28C-NDP2 Sensor DIM LED Driver
Product Features
- Conform to ERP standard, micro-power consumption
- 5.8GHz ISM brand, can be batch RED, FCC certification
- Non-isolated, Flicker-free, Driver+sensor 2 in 1
- With corridor function, light priority function, suitable for all kinds of use scenes
- Compact size, easy to install inside the lamps and lanterns
- All parameters can be adjusted via DIP switch
Technical Parameters
| Input | ||
|---|---|---|
| Voltage range | 198-264VAC 50Hz /60Hz | |
| Rated voltage | 220-240VAC 50Hz/60Hz≤0.12A(@230VAC full load) | |
| Input current | ≤0.17A @ 230VAC | |
| Inrush current | <15A (100us half-current)@230VAC | |
| Power factor | ≥0.90 (230V Max load) | |
| Stand-by power | <0.1W@230VAC | |
| Working efficiency | 86%,230VAC / Max Load | |
| Lightning surge | LN: 1KV | |
| Output | ||
| Working model | CC | |
| Type of load | LED | |
| Full load power | 25W Max | |
| Flicker ripple | ≤5% | |
| No-load output voltage | 60VDC Max | |
| Load current | Single current: 450mA /500mA/550mA/700mA | |
| Load output voltage range | 24-42VDC 450mA/500mA/550mA 24-36VDC 700mA | |
| Constant current accuracy | ±5% @230VAC | |
Functions
On/OFF function (Setting "stand-by period" to "0s")
3-step dimming function (Setting stand-by period to "1min/10min")
Daylight priority function (Setting stand-by period to "+∞")
Wiring Diagram
Note: The product can be connected to only one load. Connecting more than one load will damage product.
Dimensions (mm)
DIP Switch Settings
Detection Area
| 1 | 2 | Setting |
|---|---|---|
| ON | ON | 100% |
| ON | - | 75% |
| - | ON | 50% |
| - | - | 25% |
Hold Time
| 3 | 4 | Setting |
|---|---|---|
| ON | ON | 5S |
| ON | - | 1min |
| - | ON | 5min |
| - | - | 10min |
Installation & Usage Notes
- The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
- The microwave sensor has good penetration ability to plastic and wooden objects, but the front and near the microwave antenna cannot be equipped with metal accessories.
- It is recommended that microwave sensors be installed at a distance of more than 2m from switches, routers and other wireless devices to avoid radio interference.
- Should avoid long-term vibration equipment or moving objects around the microwave sensor.
- This product is suitable for indoor installation. When semi-outdoor or outdoor installation, wind, rain may be regarded as moving signal trigger induction.
- If wall mounting, the detection distance of microwave sensor will be greatly increased.
- Due to continuous improvement, the contents of this instruction could be changed without prior notice.
