25W CC 350mA to 700mA PUSH and DALI2 compact led driver with 5 years warranty
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 承認 | CE,REACH,ROHS | 定格電圧 | 220-240V AC 50Hz / 60Hz |
|---|---|---|---|
| 製品名 | PUSH および DALI2 コンパクト LED ドライバー | 全負荷出力電力 | 最高25W |
| 負荷出力電圧 | 9-58V | 調光モード | DALI,PUSH,1〜10V |
| 作業温度 | -25℃-50℃ | 出力電流 | 350/500/550/700mA |
| ハイライト | 25W DALI2 LED driver,compact PUSH dimmable driver,700mA LED driver with warranty |
||
製品の説明

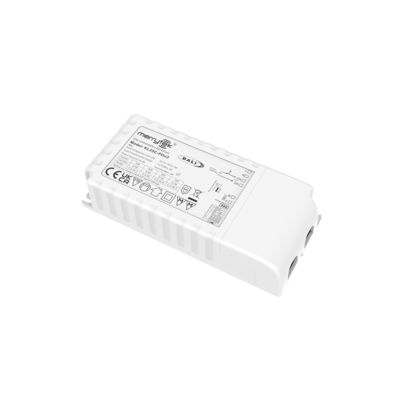

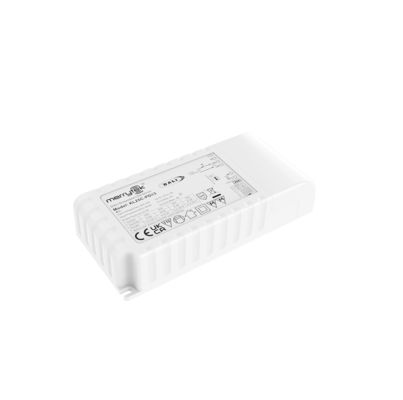

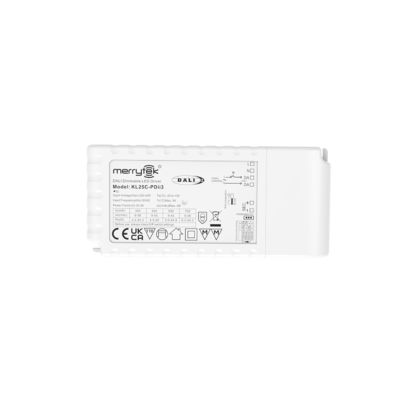

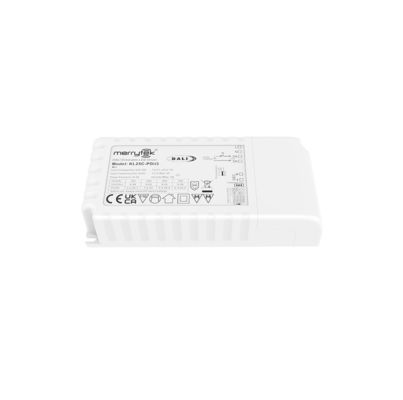

25W CC 350mA to 700mA PUSH and DALI2 Compact LED Driver with 5 Years Warranty
Product Description
A high-performance LED driver featuring built-in DALI2 protocol, primary PUSH dimming function, and comprehensive protection features with a 5-year warranty.
Key Features
- Built-in DALI2 protocol with flicker-free performance across full dimming range
- Primary PUSH dimming with state memory function
- Protection features: short circuit, over temperature, over voltage
- Low standby power consumption ≤ 0.5W
- 5-year warranty for reliable performance
Technical Specifications
| Input Specifications | ||
|---|---|---|
| Operating Voltage | 198-264VAC 50Hz /60Hz | |
| Rated Input Voltage | 220-240VAC 50Hz /60Hz | |
| DC Input Voltage range | 200-240VDC | |
| Input Current | 0.15A Max. | |
| Input Inrush Current | <15A (Half current pulse width 100US) @230VAC | |
| Power Factor | ≥ 0.95 (@230Vac,100% load) | |
| Total harmonic distortion | Typical: 15% (@230Vac, 100% load) | |
| Stand-by Power | ≤0.5W (@230Vac) | |
| Efficiency | 86%Max (@230Vac,100% load) | |
| Wiring Method | Push terminal, wire cross section:0.75-1.0mm² | |
| Output Specifications | ||
|---|---|---|
| Operating mode | Constant Current | |
| Load type | LED | |
| Ripple requirement | Flicker value: less than 2% for the whole dimming range | |
| Start-up time | <1s (@230Vac) | |
| No-load output voltage | 68VDC Max. | |
| Load output voltage range | 9-58VDC | |
| Full load output power | 25W Max. | |
| Load output current | 350MA(9-58V)500MA(9-50V)550MA(9-45V)700MA(9-36V) | |
| Constant current/voltage Precision | Constant Current Precision ±5% | |
Dimensions
Wiring Diagrams
PUSH Dimming Wiring
DALI Wiring
0-10V Dimming Wiring
Operation Instructions
ON/OFF Operation: Short-press the PUSH switch (0.1s-1s) to turn on/off.
Dimming: Press and hold (1s-8s) to dim/brighten (2-100% range).
Memory Function: PUSH dimming maintains last brightness setting.
DALI Mode: Connect to DALI system for 0-100% dimming control.
Important Notes
- Always connect load before powering on to prevent damage
- Output maintains residual voltage for ~3 minutes after power off
Note: All parameters are tested at 230VAC input and 25°C environment unless specified.
