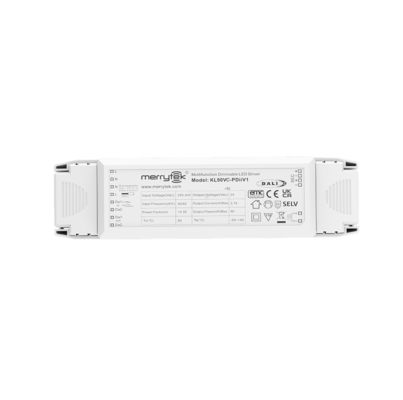

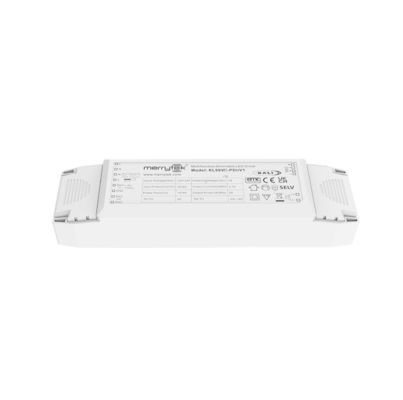

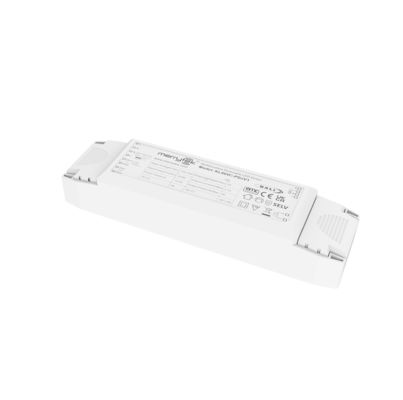

90W constant voltage 12V DALI DT8 dimmable driver for led strip lights
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 定格入力電圧 | 220〜240Vac 50Hz/60Hz | DC 入力電圧範囲 | 200〜240Vdc |
|---|---|---|---|
| 動作モード | 一定した流れ | 制御方法 | LEDストリップライト用定電圧12V DALI DT8調光可能ドライバー |
| 力率 | ≥0.99 | 効率 | 91％ |
| 一定の電圧 | 12VDC | 寸法 | 202×58×30mm |
| IP 評価 | IP20 | 保証 | 5年 |
| ハイライト | 90W DALI DT8 dimmable LED driver,12V constant voltage LED strip driver,DALI2.0 dimmable power supply |
||
製品の説明
90W Constant Voltage 12V DALI DT8 Dimmable Driver for LED Strip Lights
Product Description
High-performance 90W constant voltage driver with advanced dimming capabilities for LED strip lighting applications.
- Flicker-free for the whole dimming range
- Stand-by power below 0.5W
- Primary dimming with a push button
- Secondary dimming with 0-10V dimmer and potentiometer
- Built-in DALI interface DT8
- Supports 10V PWM dimming (3KHz-8KHz)
- Protection: short circuit / over temperature/ over voltage
- Derating the current for high ambient temperature
- Push dim with memory function
- 5-year warranty
Technical Parameters
| Series | KL90VC-PDiiV |
|---|---|
| Input | |
| Voltage range | 198~264Vac 50Hz /60Hz |
| Rated supply voltage | 220~240Vac 50Hz /60Hz |
| DC voltage range | 200~240Vdc |
| Input current (@230Vac) | 0.46A Max |
| Inrush Current | 30A (Half current pulse width 100US) @230VAC |
| Power factor | ≥ 0.99 (@230Vac,100% load) |
| Total harmonic distortion | Typical: 6% (@230Vac, 100% load) |
| Stand-by power | ≤0.3W |
| Efficiency(230Vac,100% load) | 91%Max |
| Wiring method | Push terminal, wire cross section:0.5-1.5mm² |
| Output | |
| Operating mode | Constant voltage |
| Load type | LED |
| Flickering / Flickering-Free | Flickering-Free |
| Start-up time | <1s (@230Vac) |
| Forward voltage | 12V |
| Output current | 7.5A |
| Max. output voltage (no-load) | 20V |
| Full load output power | 90W Max. |
| Minimum load | 9W |
| Output current/voltage tolerance | ±5% |
| Wiring method | Screw terminal, wire cross section:2*0.5-2.5mm² |
Dimensions
Wiring Diagrams
DALI Dimming
Push Dimming
Operation Instructions
- ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
- Dimming: Press and hold (1s-8s) to adjust brightness (2-100%)
- Color temperature adjustment: Turn off lights, then press and hold to adjust color temperature
- Memory function: Remembers last dimming setting
- DALI dimming: Connect to DALI system for 0-100% dimming
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
