x商品の詳細
| 定格入力電圧 | 220〜240Vac 50Hz/60Hz | DC 入力電圧範囲 | 200〜240Vdc |
|---|---|---|---|
| 動作モード | 一定の電圧 | 制御方法 | 定電圧 24V DALI DT8 LED ストリップ調光可能ドライバー |
| 力率 | ≥0.99 | 効率 | 92％ |
| 一定の電圧 | 24VDC | 寸法 | 202×58×30mm |
| IP 評価 | IP20 | 保証 | 5年 |
| ハイライト | 24V DALI DT8 LED driver,90W dimmable LED strip driver,DALI2.0 driver with 5-year warranty |
||
製品の説明

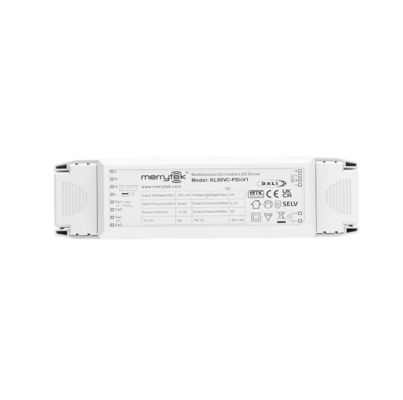

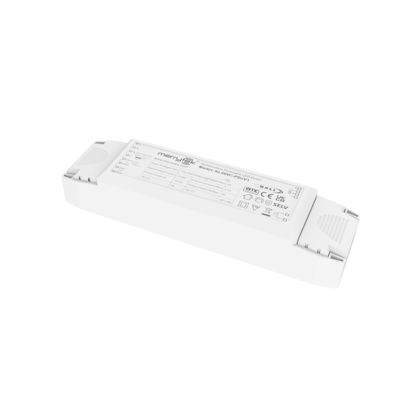

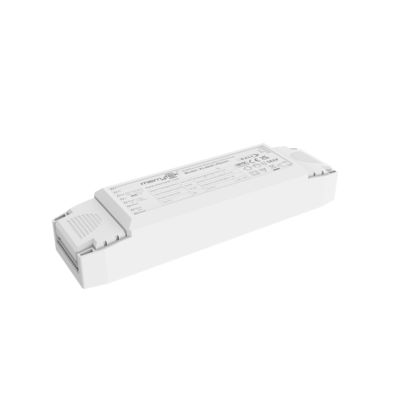

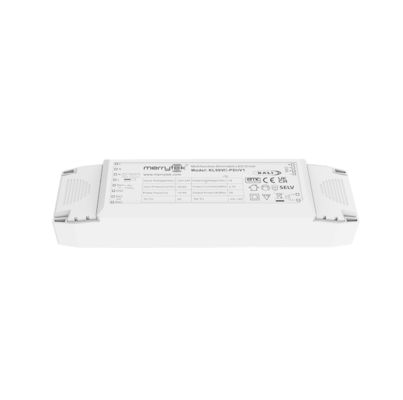

90W Constant Voltage 24V DALI DT8 LED Strip Dimmable Driver with 5-Year Warranty
Product Description
High-performance 90W constant voltage driver with advanced dimming capabilities for LED strip lighting applications.
- Flicker-free for the whole dimming range
- Stand-by power below 0.5W
- Primary dimming with a push button
- Secondary dimming with a 0-10V dimmer and a potentiometer
- Built-in DALI interface DT8
- Supports 10V PWM dimming (3KHz-8KHz)
- Protection: short circuit / over temperature/ over voltage
- Derating the current for high ambient temperature
- Push dim with memory function
- 5-year warranty
Technical Parameters
| Series | Name | KL90VC-PDiiV1 |
|---|---|---|
| Input | Voltage range | 198~264Vac 50Hz /60Hz |
| Rated supply voltage | 220~240Vac 50Hz /60Hz | |
| DC voltage range | 200~240Vdc | |
| Input current (@230Vac) | 0.45A Max | |
| Inrush Current | 30A (Half current pulse width 100US) @230VAC | |
| Power factor | ≥ 0.99 (@230Vac,100% load) | |
| Total harmonic distortion | Typical: 6% (@230Vac, 100% load) | |
| Stand-by power | ≤0.3W | |
| Efficiency(230Vac,100% load) | 92%Max | |
| Wiring method | Push terminal, wire cross section:0.5-1.5mm² | |
| Loop-in&Loop-out quantity | 16PCS(@230Vac) | |
| Automatic circuit breaker type (Calculate current in the wire) | B10 | 7 | C10 | 12 | B10 | 7 | C10 | 12 | B10 | 6 | C10 | 10 B13 | 9 | C13 | 16 | B13 | 9 | C13 | 16 | B13 | 7 | C13 | 13 B16 | 11 | C16 | 20 | B16 | 11 | C16 | 20 | B16 | 9 | C16 | 16 B20 | 14 | C20 | 25 | B20 | 14 | C20 | 25 | B20 | 11 | C20 | 20 B25 | 17 | C25 | 35 | B25 | 17 | C25 | 35 | B25 | 14 | C25 | 25 / | / | C32 | 35 | / | / | C32 | 35 | / | / | C32 | 30 |
|
| Output | Operating mode | Constant voltage |
| Load type | LED | |
| Flickering / Flickering-Free | Flickering-Free | |
| Start-up time | <1s (@230Vac) | |
| Forward voltage | 24V | |
| Output current | 3.75A | |
| Max. output voltage (no-load) | 30V | |
| Full load output power | 90W Max. |
Dimensions
Wiring Diagrams
DALI Dimming
Push Dimming
Operation Instructions
- ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
- Dimming: Press and hold (1s-8s) to adjust brightness (2-100%)
- Color temperature adjustment: Turn off lights, then press and hold to adjust color temperature
- Memory function: Remembers the last dimming setting
- DALI dimming: Connect to the DALI system for 0-100% dimming
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
