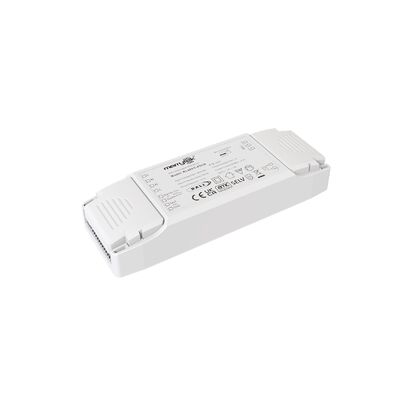

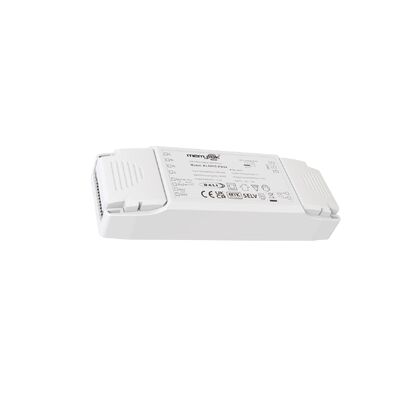

40W constant voltage led driver 12v DALI DT8 led strip dimmable driver with 5-year warranty
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 定格入力電圧 | 220〜240Vac 50Hz/60Hz | DC 入力電圧範囲 | 200〜240Vdc |
|---|---|---|---|
| 動作モード | 定電圧 LED ドライバー 12v | 制御方法 | DALI2、プッシュ、0-10Vdc |
| 力率 | ≥0.95 | 効率 | 87% |
| 一定の電圧 | 12VDC | 寸法 | 150×52×28mm |
| IP 評価 | IP20 | 保証 | 5年 |
| ハイライト | 40W DALI dimmable LED driver,12V constant voltage LED driver,DT8 LED strip driver with warranty |
||
製品の説明
40W Constant Voltage LED Driver 12V DALI DT8 LED Strip Dimmable Driver with 5-Year Warranty
High-performance 40W constant voltage LED driver with advanced dimming capabilities and comprehensive protection features.
Product Features
- Flicker-free for the whole dimming range
- Stand-by power below 0.5W
- Primary dimming with a push button
- Secondary dimming with a 0-10V dimmer and a potentiometer
- Built-in DALI interface DT8
- Supports 10V PWM dimming (3KHz-8KHz)
- Protection: short circuit / over temperature/ over voltage
- Derating the current for high ambient temperature
- Push dim with memory function
- 5-year warranty
Technical Parameters
| Series | Name | KL40VC-PDiiV |
|---|---|---|
| Input | Voltage range | 198~264Vac 50Hz /60Hz |
| Rated supply voltage | 220~240Vac 50Hz /60Hz | |
| DC voltage range | 200~240Vdc | |
| Input current | 0.21A Max.@230Vac | |
| Inrush Current | 15A (Half current pulse width 100US) @230VAC | |
| Power factor | ＞ 0.95 (@230Vac,100% load) | |
| Total harmonic distortion | Typical: 16% (@230Vac, 100% load) | |
| Stand-by power | ≤0.5W | |
| Efficiency(@230Vac,100% load) | 87%Max | |
| Wiring method | Push terminal, wire cross section:0.5-1.5mm² | |
| Loop-in&Loop-out quantity | 30PCS(@230Vac) | |
| Automatic circuit breaker | See detailed table for type/number combinations | |
| Output | Operating mode | Constant voltage |
| Load type | LED | |
| Flickering / Flickering-Free | Flickering-Free | |
| Start-up time | <1s (@230Vac) | |
| Load output voltage range | 12V CV | |
| Load output current | 3.33A Max. |
Dimensions
Wiring Diagrams
Operation Instructions
- Short-press the PUSH switch (0.1S-1S) to turn on/off
- Press and hold (1S-8S) for dimming (2-100% range)
- Color temperature adjustment: Turn off lights, then press/hold to adjust from current brightness
- Memory function: Remembers last dimming setting
- Dimming synchronization: Up to 15 parallel or 25 series units
- DALI dimming: 0-100% range when connected to DALI system
Note: All parameters are tested at 230VAC input and 25°C unless specified otherwise.
