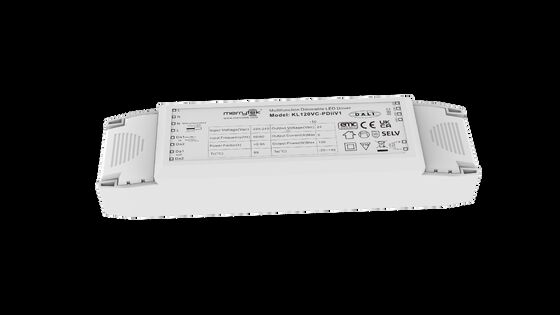

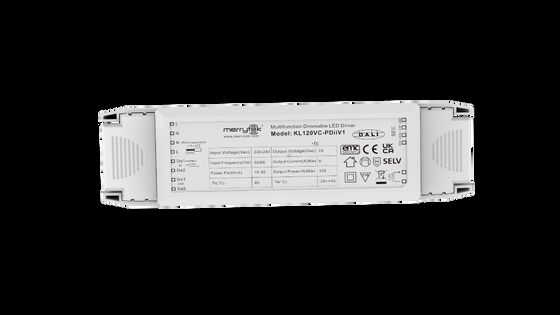

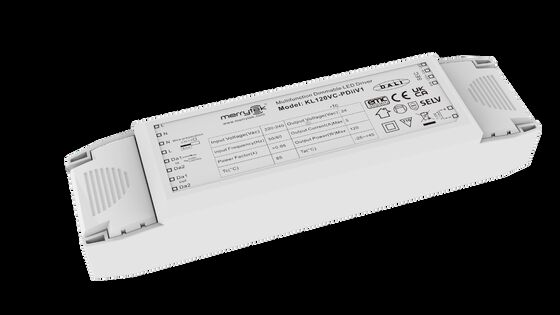

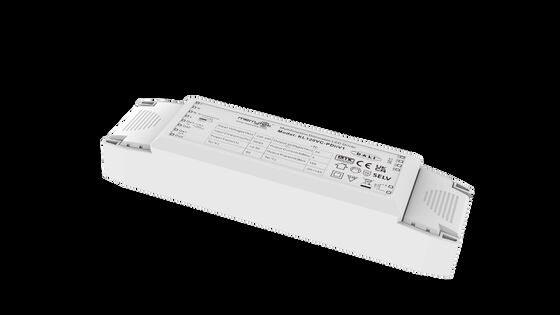

120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 定格入力電圧 | 220〜240Vac 50Hz/60Hz | DC 入力電圧範囲 | 200〜240Vdc |
|---|---|---|---|
| 動作モード | DALI2 DT8 & PUSH & 1-10V 調光 | 制御方法 | 24V DALI DT8 調光可能な LED ドライバー |
| 力率 | ≥0.99 | 効率 | 92％ |
| 定電圧 | 24VDC | 寸法 | 202×58×30mm |
| IP評価 | IP20 | 保証 | 5年 |
| ハイライト | 24V DALI DT8 dimmable LED driver,120W constant voltage LED driver,DALI2.0 dimmable driver with warranty |
||
製品の説明
120W Constant Voltage 24V DALI DT8 Dimmable LED Driver
High-performance 120W constant voltage driver with advanced dimming capabilities for LED strip lighting applications.
Key Features
- Flicker-free performance across entire dimming range
- Stand-by power consumption below 0.5W
- Primary dimming with push button control
- Secondary dimming with 0-10V dimmer and potentiometer
- Built-in DALI interface DT8 compatibility
- Supports 10V PWM dimming (3KHz-8KHz)
- Comprehensive protection: short circuit, over temperature, over voltage
- Current derating for high ambient temperature operation
- Push dim with memory function
- 5-year manufacturer warranty
Technical Parameters
| Series | KL120VC-PDiiV1 |
| Input Specifications | |
| Voltage range | 198~264Vac 50Hz /60Hz |
| Rated supply voltage | 220~240Vac 50Hz /60Hz |
| DC voltage range | 200~240Vdc |
| Input current (@230Vac) | 0.6A Max |
| Inrush Current | 30A (Half current pulse width 100US) @230VAC |
| Power factor | ≥ 0.99 (@230Vac,100% load) |
| Total harmonic distortion | Typical: 6% (@230Vac, 100% load) |
| Stand-by power | ≤0.3W |
| Efficiency(230Vac,100% load) | 92%Max |
| Wiring method | Push terminal, wire cross section:0.5-1.5mm² |
| Output Specifications | |
| Operating mode | Constant voltage |
| Load type | LED |
| Flickering / Flickering-Free | Flickering-Free |
| Start-up time | <1s (@230Vac) |
| Forward voltage | 24V |
| Output current | 5A |
| Max. output voltage (no-load) | 30V |
| Full load output power | 120W Max. |
| Minimum load | 12W |
| Output current/voltage tolerance | ±5% |
| Wiring method | Screw terminal, wire cross section:2*0.5-2.5mm² |
Dimensions
Wiring Diagrams
DALI Dimming
Push Dimming
Operation Instructions
- ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
- Dimming: Press and hold (1s-8s) to adjust brightness (2-100%)
- Color temperature adjustment: Turn off lights, then press and hold to adjust color temperature
- Memory function: Remembers the last dimming setting
- DALI dimming: Connect to DALI system for 0-100% dimming control
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
