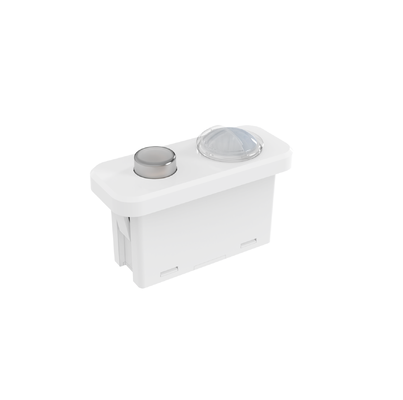

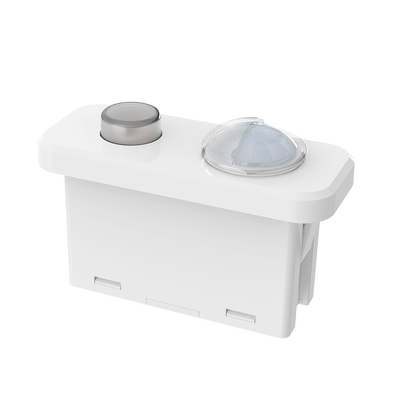

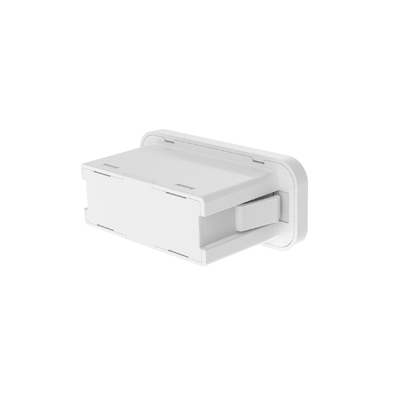

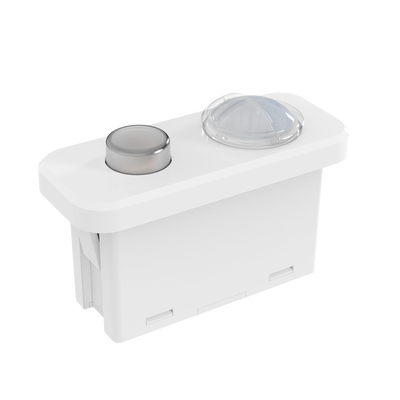

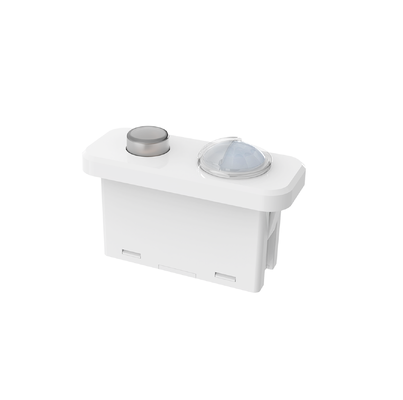

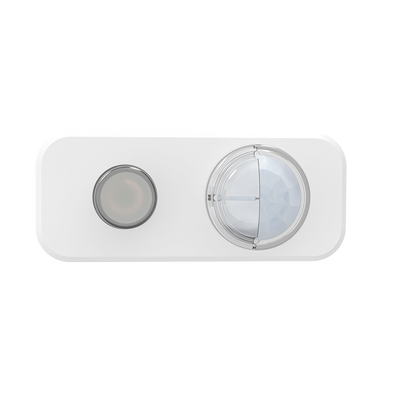

Casambi Dali Bluetooth Network PIR Sensor, Zhaga Book20 Interface, Suitable For Office Use
商品の詳細
| 定格電圧 | 12±1VDC | 動作電流 | 35±5MA |
|---|---|---|---|
| リップル電圧 | <100MVP-P | 出力信号 | ダリ調光 |
| 検出モード | PIR 検出 | 設置高さ | 通常 3m (最大 4m) |
| IP等級 | IP20 | 一生 | 5年保証@TA（屋内） |
| ハイライト | Casambi Dali Bluetooth motion sensor,Zhaga Book20 PIR sensor,office wireless motion detector |
||
製品の説明
Casambi Dali Bluetooth Network PIR Sensor
Zhaga Book20 Interface, Dali2 & D4i Certified Dimmable PIR Motion Sensor with Bluetooth Connectivity
Product Overview
Professional-grade PIR motion sensor with daylight harvesting capabilities, designed for modern office environments with Casambi Bluetooth network integration.
Key Features
- International standard Zhaga Book20 interface for easy installation
- Maximum installation height of 4 meters
- 5-year warranty for reliable performance
- Ideal for open offices and individual office spaces
- PIR motion detection with daylight sensor functionality
- Integrated Casambi Bluetooth module with app control
- Outputs DALI dimming signals for smart lighting control
Technical Specifications
| Input Parameters | |
|---|---|
| Rated Voltage | 12±1VDC |
| Operating Current | 35±5mA |
| Ripple Voltage | <100mVp-p |
| Output Parameters | |
| Output Signal | DALI Dimming |
| Sensor Parameters | |
| Detection Mode | PIR Detection |
| Detection Area | Casambi APP Configurable |
| Hold Time | Casambi APP Configurable |
| Daylight Sensor | Casambi APP Configurable |
| Daylight Priority | Casambi APP Configurable |
| Dimming Level | Casambi APP Configurable |
| Detection Range | Ceiling installation 3m high: Radius ≥2.5m |
| Installation Height | Typical 3m (4m Maximum) |
| Wireless Parameters | |
| BLE Module | Casambi Bluetooth |
| Working Frequency | 2.402-2.480GHz |
| Transmitting Power | +7dBm (max) |
| Transmitting Distance | Point to point 25m Maximum |
| Environmental Specifications | |
| Working Temperature | -20℃ to +55℃ |
| Storage Temperature | -40℃ to +80℃, Humidity ≤85% (non-condensing) |
| Certifications & Standards | |
| Certifications | CE, RoHS 2.0, REACH Compliant |
| IP Rating | IP20 |
| Physical Specifications | |
| Wiring | 2 pin PH2.0 terminal |
| Installation | Zhaga Book20 Standard |
| Net Weight | 15.8±3g |
| Lifetime | 5 years warranty (indoor use) |
Function Capabilities
| Function | Configuration |
|---|---|
| ON/OFF Function | Casambi App Setting |
| 2-step Dimming Function | Casambi App Setting |
| 3-step Dimming Function | Casambi App Setting |
| Daylight Harvesting | Casambi App Setting |
| Daylight Priority | Casambi App Setting |
| Network Function | Casambi App Setting |
Product Dimensions & Installation
Dimension diagrams and cut-hole specifications:
Functional diagram:
Wiring diagram:
Installation instructions:
Initialization & Default Settings
After switching on power, the sensor requires 45-60 seconds warm-up time before beginning operation.
Default configuration: Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disabled, Stand by period: 0s, Stand by DIM Level: 10%
Application Guidelines
Important Installation Notes:
- Professional electrician installation required - turn off power before installation
- PIR sensors cannot penetrate materials - ensure clear line of sight to detection area
- Reduced detection sensitivity in cold conditions with thick clothing
- Avoid directing sensor toward heat sources (air conditioners, heaters)
- Indoor use only - outdoor sunlight affects detection accuracy
- Test with 5 units minimum before mass installation in new environments
- Requires stable DC power supply with low ripple factor (<100mV)
Detection Performance Considerations:
- Detection distance varies with height, mounting position, and environmental temperature
- Reduced sensitivity when ambient temperature approaches human body temperature (36℃-37℃)
- False triggering possible when ambient/LED tray temperature exceeds 55℃
- Daylight threshold measurements vary with environment, weather, and time-of-day
Potential False Triggering Scenarios:
- Small animals entering detection range
- Direct exposure to far-infrared rays from sunlight, headlights, or incandescent lamps
- Rapid temperature changes from HVAC systems or humidifiers
Potential Non-Triggering Scenarios:
- Obstructions like glass or acrylic blocking infrared transmission
- Minimal movement or extremely high-speed movement of heat sources
Note: Product specifications subject to change due to continuous improvement. Dimming performance may vary with different DALI2 drivers.
