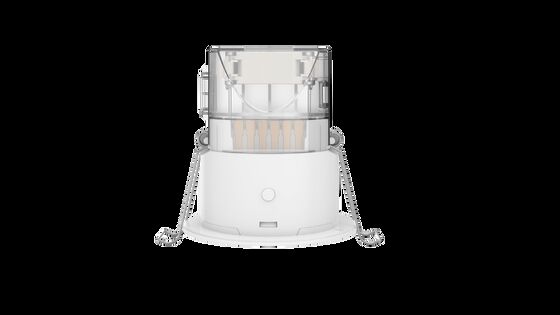

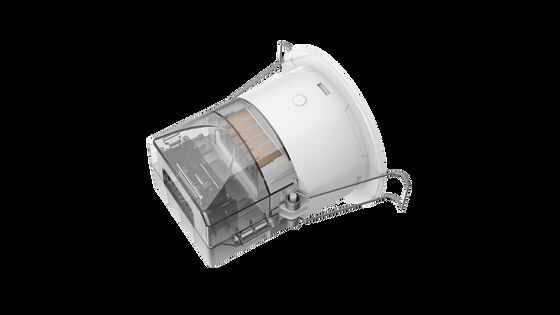

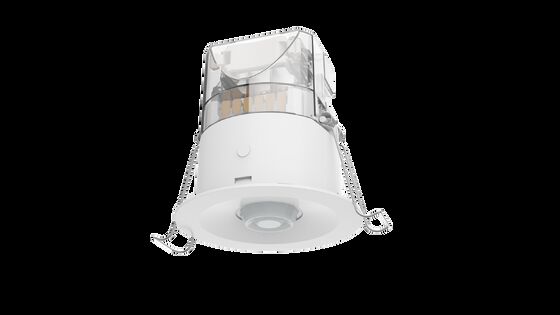

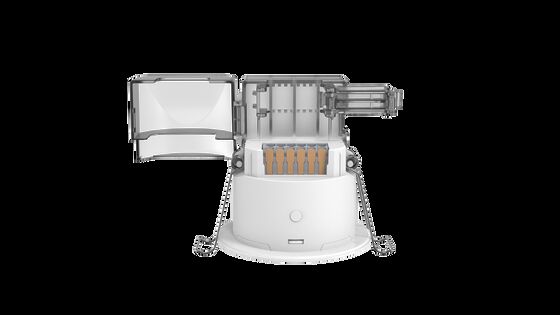

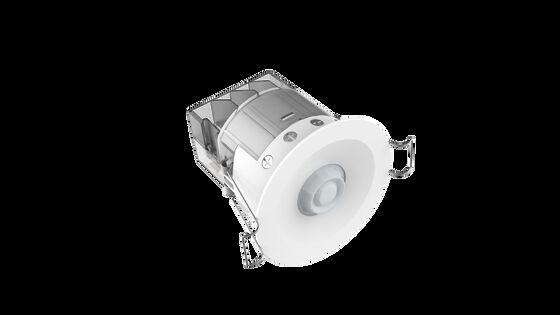

Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors

  • Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors
  • Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors
  • Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors
  • Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors
  • Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors
起源の場所 中国
ブランド名 Merrytek
証明 CE
モデル番号 MSA246S IR A2
最小注文数量 100個
価格 交渉可能
パッケージの詳細 白い箱+ 白い箱タグ+ クラップボード+ カートン ((K=A)
受渡し時間 1、サンプルおよび小注文：支払いを受け取ってから5営業日以内。 2、バルク注文：入金の受け取りから3〜4週間後。
支払条件 T/T
供給の能力 10月1000個

無料のサンプルとクーポンを私に連絡してください.

ワットサップ:0086 18588475571

ウェチャット: 0086 18588475571

スカイプ: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
入力電圧 AC100-240V 動作電流 20mA マックス
消費電力 ≤0.5W 関数 ON/OFF機能+ドライ接点出力
利用可能 占有検知器と動き検知器 取り付け高さ 2.5-4m
インストール フラッシュマウント サイズをカットします Φ65mm
ハイライト

dual channel PIR occupancy switch

,

flush-mounted motion detector

,

PIR occupancy sensor with dual output
メッセージ
製品の説明
Easy Use Series Dual Channel Output Flush-Mounted PIR Occupancy Switches
Professional-grade PIR occupancy detectors and motion detectors with dual channel output capabilities for industrial and commercial applications.
Key Features
  • PIR motion detection technology
  • Dual channel output with ON/OFF function or dry contact output
  • Daylight threshold working mode with learning function
  • Adjustable detection area, hold time, and daylight threshold via remote control or potentiometer
  • Maximum detection range: 10-14m diameter
  • Push terminal for manual load control
  • Full-automatic or semi-automatic operation modes
  • Multiple sensor synchronization via parallel S terminal wiring
  • Advanced IQ mode for intelligent operation
Technical Specifications
Input/Output Parameters
Input Voltage 100-240V AC
Rated Voltage 230V AC
Power Consumption 20mA max
Output Signal ≤0.5W @230V DC
Working Mode ON/OFF + Dry Contact
Surge Protection 2KV(L/N, EN61000-4-5)
Surge Capacity 30A (50% Ipeak, twidth=500us, 230Vac full load, cold start)
Load Capacity Channel one: 1200W resistive or 600W inductive; Channel two: dry contact, 5A 24Vdc max
Sensor Parameters
Function PIR Motion Detection + Daylight Sensor
Detection Area 100%/75%/50%/25% (adjustable)
Hold Time Channel one: 5s/30s/1min/5min/10min/30min
Channel two: Test 2s/30s/1min/3min/5min/10min/20min/30min
Daylight Sensor 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable
Detection Range 5-6m tangential at 3m mounting height
Mounting Height 2.5-4m (typical: 3m)
Dimensions & Function
Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors 0 Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors 1
Wiring Diagram
Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors 2
Important Wiring Notes:
  • LN is AC input terminal, L'N is AC output terminal - ensure correct wiring sequence
  • Single sensor output limits: resistive loads ≤1200W, capacitive loads ≤800W
  • For multiple loads, use AC contactor or solid-state relay to prevent sensor damage
  • S synchronization port must NOT be connected to N line (neutral wire)
Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors 3
Initialization & Default Settings

When powered on, the sensor indicator illuminates for 35 seconds for initialization. After this period, sensor parameters can be configured via potentiometer or remote control.

Factory Default Settings:
Detection Area: 100% | Hold Time: 2s | Daylight Sensor: Disable | Daylight Priority: Disable | LED Indicator: ON

Detection Radiation Pattern
Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors 4
Potentiometer Settings
Detection Area
Gear Percentage
1 25%
2 50%
3 75%
4 100%
Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors 5
Hold Time
Gear Hold Time
1 Test 2s
2 30s
3 1min
4 5min
5 10min
6 30min
7 Pulse Mode
8 IQ Mode
Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors 6
Daylight Threshold
Gear Threshold Value
1 5lux
2 15lux
3 30lux
4 50lux
5 100lux
6 150lux
7 Disable
Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors 7
Remote Control MH10
Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors 8
Application Precautions
  • Installation must be performed by qualified electrician with power disconnected
  • Optimal installation height: 3m - not suitable for outdoor use
  • Avoid locations with temperature/airflow changes to prevent false triggering
  • Ensure detection range is unobstructed by furniture, screens, or plants
  • No reflective objects should be directly in front of sensor
  • Keep minimum 2m distance from electromagnetic radiation sources (Wi-Fi routers, cameras, etc.)
  • Sensing distance may vary based on installation height and ambient temperature
Disclaimer

Due to product technology complexity and application environment differences, complete accuracy cannot be guaranteed. Specifications are for reference only. We reserve the right to modify product specifications without notification and make no legal commitments or guarantees.

For more information, please contact our sales representative for detailed specifications.
