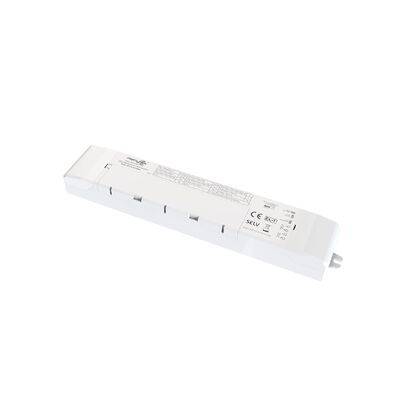

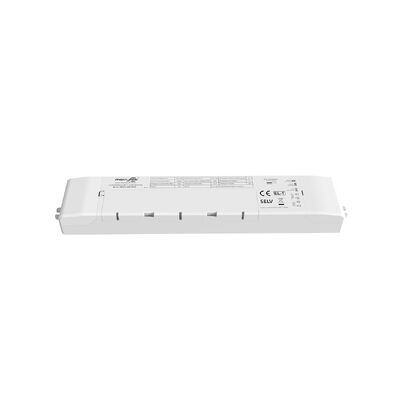

3W Standard and Self Test Emergency Packs with 3 Hours Duration and 5 Years Warranty
Product Overview
Constant power output LED emergency power supply with comprehensive safety features and long-lasting LiFePO4 battery technology.
- Wide output voltage range for versatile applications
- Input relay switching for reliable operation
- High safety, high performance LiFePO4 battery with extended lifespan
- Integrated battery management system
- Available in standard and self-test emergency pack configurations
Technical Specifications
Charge Parameters
| Model No. | KE036-03AM180HB |
| Rated input voltage | 220-240Vac 50Hz/60Hz |
| Rated input current | 0.06A Max. @230Vac |
| Input inrush current | 10A(Twidth=100us 50% Ipeak) @230Vac (Cold start at full load) |
| Power factor | ≥0.5@230Vac |
| Input power | <4W@230Vac |
| Battery charging current | 250mA Max. |
| Battery charging time | 24 hours Max. |
Emergency Parameters
| Operating mode | Emergency mode |
| Load type | LED |
| Emergency power | 2.5W |
| Emergency time | 3 hours |
| Load output current | 250-40mA |
| Load output voltage | 10-60Vdc |
| Battery | LiFePO4 6.4V 1.8Ah (capacity meets emergency time at 25℃) |
| Battery warranty | 5 years @25℃ |
Driver Requirements
| Surge current | 8A |
| Input current | 3A Max. |
| Output current | 2A Max. |
LED Indication & Auto Testing
| Status/Condition | Reason | Indicator Status |
|---|---|---|
| Battery fully charged and operational | Standard daily use | Solid green |
| Battery Charging | Initial Charge/Battery Top Up | Flashing green 1 sec on 1 sec off |
| Auto Test 3 Hours (every 12 months) | Periodic self-test | Flashing Green 3 sec on 1 sec off |
| Auto Test 5 Min (every 30 days) | Periodic self-test | Flashing Green 3 sec on 3 sec off |
| Duration test fault | Automatic test failed | Flashing Red 0.5 sec on 0.5 sec off |
| LED fault | Not plugged in or damaged/faulty | Flashing Red 2 sec on - 2 sec off |
| Battery Disconnected/Faulty | Not plugged in or damaged/faulty | Solid red |
Protection Features
| Battery over-charge/deep discharge protection | Yes |
| Output over-voltage protection | Yes |
| Output overload protection | Yes |
| Output short circuit protection | Yes |
Operating Environment
| Operating temperature/humidity | 0℃…+50℃, humidity:20%-75% (without condensation) |
| Storage temperature/humidity | -5℃-35℃ |
| Case Max. Temp (Tc) | 75℃ |
Safety & Compliance
| Withstand voltage | 3000Vac 5mA 60s (Input "L N" - output "SEC+ SEC-") |
| Safety standard | EN61347-1, 60598-2-22, 61347-2-7, 62034 |
| EMC standard | EN55015, EN61000-3-2, EN61000-3-3 |
| Battery standard | UN38.3 |
| Environmental protection | Compliant with RoHS |
| Certification | CE |
Physical Specifications
| Input terminal/wiring specification | Press terminal, wire diameter: 0.75- 2.5mm² |
| Output terminal/wiring specification | Press terminal, wire diameter: 0.75- 1.5mm² |
| IP rating | IP20 |
| Type of protection | Class II |
| Installation type | Independent installation |
| Installation dimension | 232×45×25mm |
| Packaging requirement | White box + Instruction manual + clapboard + outer carton (K=A) |
| Weight | 208±5g |
| Lifespan | 5 Year @Ta |
All parameters are tested on the input voltage 230VAC, environment temperature 25℃, unless otherwise specified.
Product Dimensions
Wiring Diagrams
Fig A: Connection with LED driver and LED module
Fig B: Direct connection with LED module
Fig C: Loop in & out configuration with LED module
Fig D: Alternative connection with LED driver and LED module
Test Mode Configuration
| Test Mode | J1 Setting |
|---|---|
| Automatic Test | |
| Manual Test | |
Manual Test Operation Instructions
- Before installation, set Pin short: Manual Test
- Connect the wire according to the wiring diagram
- L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light turns green, emergency power supply is normal charging. Turn off Switch S1; the load lamp turns off
- Emergency Simulation: Switch on, the load lamp turns on, press the switch (TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch (TEST SWITCH), then the lamp is powered by LED driver, the indicator light will turn on
Automatic Test Operation Instructions
- Before installation, set Pin open: Automatic Test
- Connect the wire according to the wiring diagram. Remove the test switch on the LED Emergency Driver
- L, N power on, start the clock, and periodic self-test. To replace the battery, turn off the power supply, and re-time
Battery Application Notice
- The battery should be recharged and discharged semiannually in normal use conditions
- Do not connect to the circuit when the battery is not in use to prevent over-discharge of the battery due to self-consumption of the circuit board
- Please keep the battery away from the heat source when installing and using, and only be allowed to be used in a certain working temperature range
- The battery should be stored in a cool and dry environment
- After long-term storage, the battery is cycled every 6 months as required
- AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and re-time
